Lynx

<webview> XElement

Used to embed web pages in Lynx, providing a flexible way to integrate existing web resources and accelerate development.

  • <webview> acts as a viewport on the element side and must have a fixed width.
  • <webview> acts as a viewport on the element side and requires a fixed height.
  • After the web resource finishes rendering, use document.getElementById to obtain its height, then notify <webview> to adjust the height via message.
  • Unless <x-webview native-interaction-enabled={false} /> is set, interaction events of <webview> cannot pass through to other elements.
  • <webview> cannot be nested with other scrollable elements; if needed, wrap it with <scroll-view>.
  • To intercept click events, manually add <x-webview catchtap={() => {}} />.

Usage

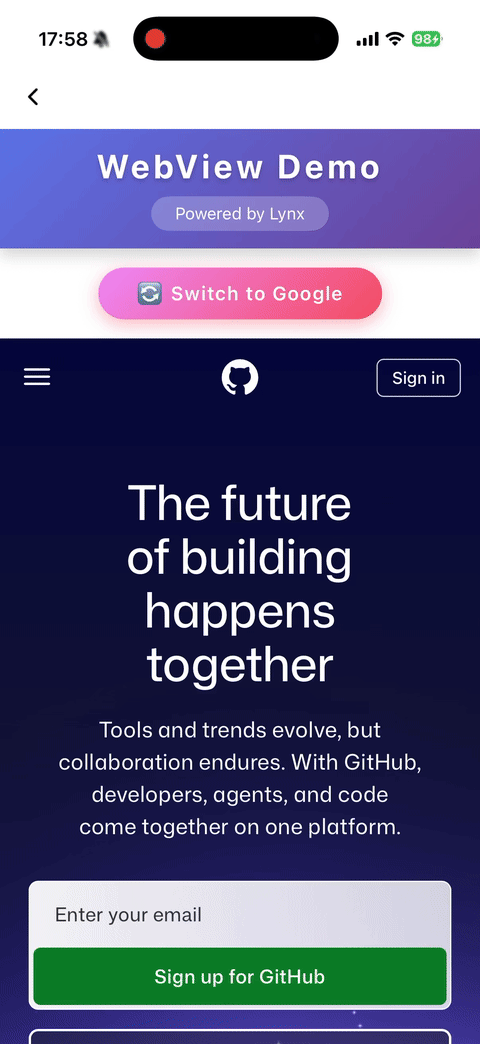

Load Web Content

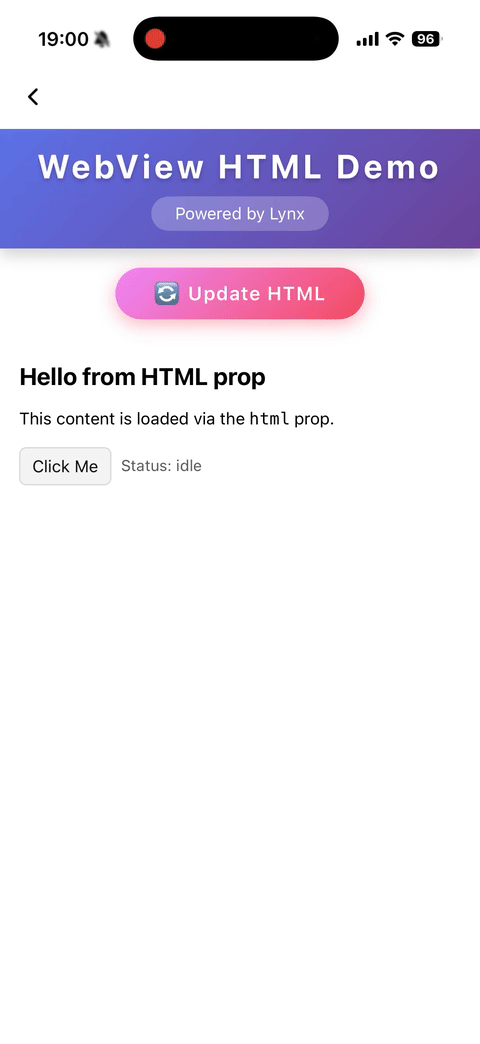

Load HTML String

Attributes

bounces

iOS
// @defaultValue: false
bounces?: boolean;

Enable bounce effect

cookies

Clay
Lynx 3.5
cookies?: any;

Preset cookies

enable-debug

Android
iOS
Clay
Harmony
// @defaultValue: false
'enable-debug'?: boolean;

Enable WebView debugging in Android so that it can be debugged in Chrome DevTools

html

Android
iOS
Harmony
3.6
html?: string;

A string that represents the html content to load. Automatically trigger content refresh when the html changes. Priority lower than src .

initjs

Clay
Lynx 3.5
initjs?: string;

Execute javascript when document ready

params

Android
iOS
params?: object;

Params for external webview implementation

scroll-bar-enable

iOS
// @defaultValue: false
'scroll-bar-enable'?: boolean;

Enable scrollbar

src

Android
iOS
Clay
Harmony
src?: string;

A string that represents the location of a resource on a remote server. Automatically trigger content refresh when the src changes

use-osr

Clay
Lynx 3.5
// @defaultValue: false
'use-osr'?: boolean;

Whether enable offscreen rendering mode

webview-type

Android
iOS
Harmony
// @defaultValue: 'default'
'webview-type'?: string;

Specify the type of webview, it could be a implementation of a webview inject from LynxService

Events

Frontend can bind corresponding event callbacks to listen for runtime behaviors of the element, as shown below.

binderror

Android
iOS
Clay
Harmony
binderror = (e: WebviewErrorEvent) => {};
FieldTypeOptionalDefaultPlatformsSinceDescription
errorCodenumberNo
Android
iOS
Clay
Harmony
A number that represents the error code
errorMsgstringNo
Android
iOS
Clay
Harmony
A string that represents the error message

Error event

bindload

Android
iOS
Clay
Harmony
bindload = (e: BaseEvent) => {};

Load success event

bindlocationchange

Clay
Lynx 3.5
bindlocationchange = (e: WebviewUrlEvent) => {};
FieldTypeOptionalDefaultPlatformsSinceDescription
urlstringNo
Clay
A string that represents the target url

location change event

bindmessage

Android
iOS
Clay
Harmony
bindmessage = (e: WebviewMessageEvent) => {};
FieldTypeOptionalDefaultPlatformsSinceDescription
msgstringNo
Android
iOS
Clay
Harmony
A string that represents the message

Message post from javascript

bindopenwindow

Clay
Lynx 3.5
bindopenwindow = (e: WebviewUrlEvent) => {};
FieldTypeOptionalDefaultPlatformsSinceDescription
urlstringNo
Clay
A string that represents the target url

open window event

Methods

Frontend can invoke component methods via the SelectorQuery API.

cookies.flushStore

Clay
Lynx 3.5

lynx.createSelectorQuery()
     .select('#id')
     .invoke({
      method: 'cookies.flushStore',
      success: function (res) {},
      fail: function (res) {},
    })
    .exec();

Write any unwritten cookies data to disk for webview

cookies.get

Clay
Lynx 3.5

lynx.createSelectorQuery()
     .select('#id')
     .invoke({
      method: 'cookies.get',
      params: {
        /**
         * Retrieves cookies whose domains match or are subdomains of domains
         * @PC
         */
        domain?: string;
        /**
         * Filters cookies by httpOnly
         * @PC
         */
        httpOnly?: boolean;
        /**
         * Filters cookies by name
         * @PC
         */
        name?: string;
        /**
         * Retrieves cookies whose path matches path
         * @PC
         */
        path?: string;
        /**
         * Filters cookies by their Secure property
         * @PC
         */
        secure?: boolean;
        /**
         * Filters out session or persistent cookies
         * @PC
         */
        session?: boolean;
        /**
         * Retrieves cookies which are associated with url. Empty implies retrieving cookies of all URLs
         * @PC
         */
        url?: string;
      };
      success: function (res) {},
      fail: function (res) {},
    })
    .exec();

Get cookies from webview

cookies.remove

Clay
Lynx 3.5

lynx.createSelectorQuery()
     .select('#id')
     .invoke({
      method: 'cookies.remove',
      params: {
        /**
         * The name of cookie to remove.
         * @PC
         */
        name?: string;
        /**
         * The URL associated with the cookie.
         * @PC
         */
        url: string;
      };
      success: function (res) {},
      fail: function (res) {},
    })
    .exec();

Removes the cookies matching url and name

cookies.set

Clay
Lynx 3.5

lynx.createSelectorQuery()
     .select('#id')
     .invoke({
      method: 'cookies.set',
      params: {
        /**
         * The domain of the cookie. Empty by default if omitted
         * @PC
         */
        domain?: string;
        /**
         * The expiration date of the cookie as the number of seconds since the UNIX epoch
         * @PC
         */
        expirationDate?: number;
        /**
         * Whether the cookie should be marked as HTTP only
         * @PC
         * @defaultValue false
         */
        httpOnly?: boolean;
        /**
         * The name of the cookie
         * @PC
         */
        name: string;
        /**
         * The path of the cookie. Empty by default if omitted
         * @PC
         */
        path?: string;
        /**
         * The Same Site policy to apply to this cookie. Can be unspecified, no_restriction, lax or strict
         * @PC
         * @defaultValue 'lax'
         */
        sameSite?: string;
        /**
         * Whether the cookie should be marked as secure
         * @PC
         * @defaultValue false
         */
        secure?: boolean;
        /**
         * The URL to associate the cookie with
         * @PC
         */
        url: string;
        /**
         * The value of the cookie. Empty by default if omitted
         * @PC
         */
        value?: string;
      };
      success: function (res) {},
      fail: function (res) {},
    })
    .exec();

Set a cookie to webview

eval

Android
iOS
Clay
Harmony

lynx.createSelectorQuery()
     .select('#id')
     .invoke({
      method: 'eval',
      params: {
        /**
         * Name of the function: `javascriptFunc(arg1, arg2)`.
         * @Android
         * @iOS
         * @Harmony
         * @PC
         */
        func: string;
      };
      success: function (res) {},
      fail: function (res) {},
    })
    .exec();

Call js function

reload

Android
iOS
Clay
Harmony

lynx.createSelectorQuery()
     .select('#id')
     .invoke({
      method: 'reload',
      success: function (res) {},
      fail: function (res) {},
    })
    .exec();

Reload the webview

Compatibility

LCD tables only load in the browser
